NEXIO -- Highly integrated Dewetron data acquisition system



Austrian DEWETRON, represented by Guangzhou Zeer Testing Technology Co., Ltd., has released a new data acquisition system - NEXIO! It is not only a portable data acquisition, but also a highly integrated, cost-effective data acquisition system. Mainly used for field testing and troubleshooting and maintenance in various application areas.

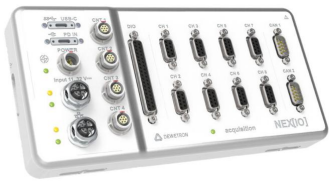

The portable NEXIO is very small and can be used in harsh environments. It has a variety of built-in acquisition channels, which can collect analog, frequency, CAN, CAN FD and other signals. In order to ensure the reliability of data transmission, two methods of Ethernet and USB3.0 are provided for customers to choose to transmit data. NEXIO has a dedicated data transmission and synchronization interface, which can be used in series with multiple chassis, providing more test channels for testing, and can ensure data synchronization and transmission reliability.



NEXIO Specifications:

  • 8 versatile analog input channels:

  • 200kHz/channel
  • 200kHz/channel
  • 24-bit resolution

  • Can directly collect voltage (0~100V) and bridge (full bridge, half bridge) signals

  • Acquisition accuracy: ±0.02% of reading ±0.02% of range ±20uV

  • With IIR low-pass filter, there are two options of Bessel and Butterworth, and there are 2, 4, 6, and 8 filter orders.

  • D-SUB9 connector

  • It has a sensor excitation voltage of 1~24V, and the program control is adjustable.

  • Support MSI smart adapter, can collect voltage (0~200V, 0~600V), 4~20mA current, strain (1/4 bridge), LVDT and RVDT sensor, charge, IEPE, K/J/T type thermocouple, RTD (PT100, PT200, PT500, PT1000, PT2000) and other sensors or signals.



  • 12 timer channels:

  • With event mode, frequency mode, duty cycle mode, sensor mode and other measurement modes.

  • 2 CAN/CAN FD channels:

  • Support CAN2.0, CAN FD

  • With configurable built-in resistance of 120Ω

  • Can collect CAN data online and load DBC or ARXML files offline for analysis

  • Can collect CAN data online and load DBC or ARXML files offline for analysis

  • The built-in OXYGEN software can complete data acquisition and analysis. It can complete spectrum analysis, filtering, integration, statistics, order analysis, strain analysis, sound level meter, noise meter, electric power analysis, octave and other data analysis.



NEXIO data acquisition system is not only portable, but also highly integrated, and the price is favorable. It provides you with convenience and high cost performance. It is your best choice!
