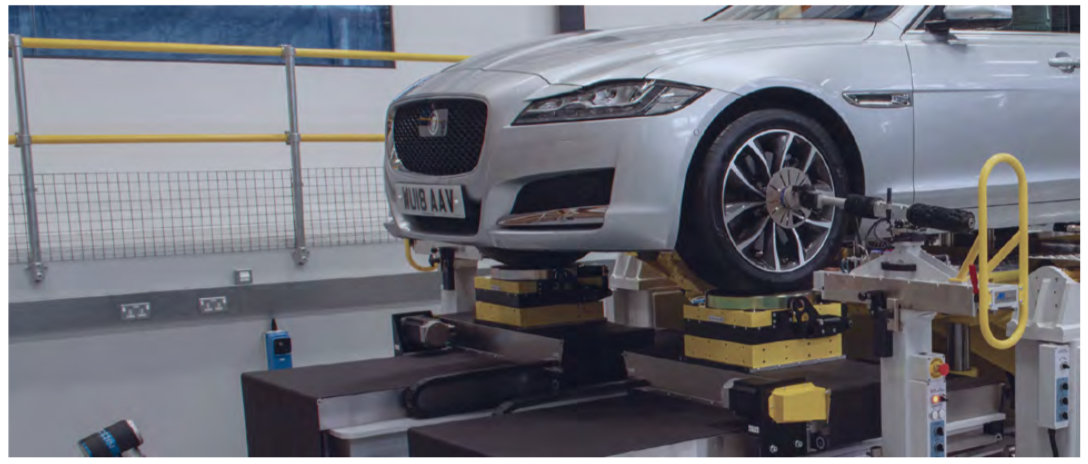

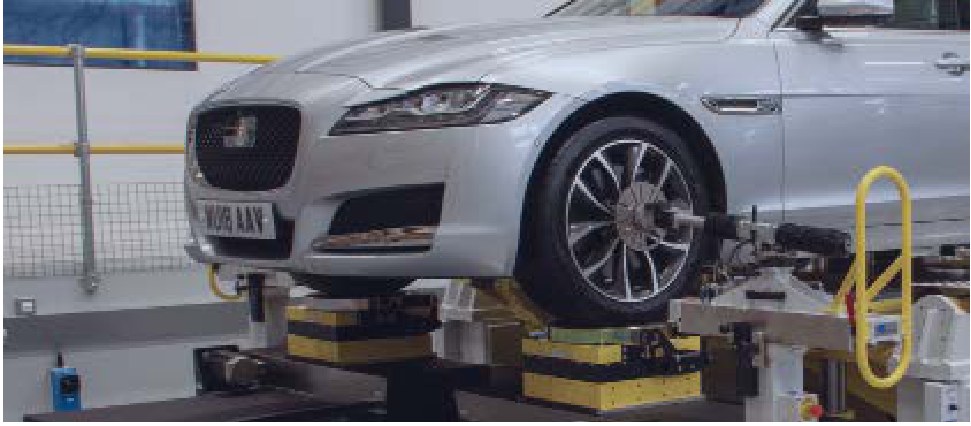

SPMM Plus is a vehicle Kinematics and Compliance (K&C) characteristic test system that acquires quasi-static suspension characteristics critical to vehicle ride and handling performance. This data can be used for benchmarking tests, prototype vehicle design, and as a basis for vehicle models widely used in simulation testing.

The SPMM adopts a fully electric body and fixed-ground design that faithfully simulates on-road vehicle behavior, with decades of application proving its efficiency, accuracy and reliability. The latest SPMM Plus is customized to meet the evolving needs of the automotive industry, featuring a larger motion range, advanced control system and the ability to accommodate larger vehicle sizes, with over 40 installation sites worldwide.

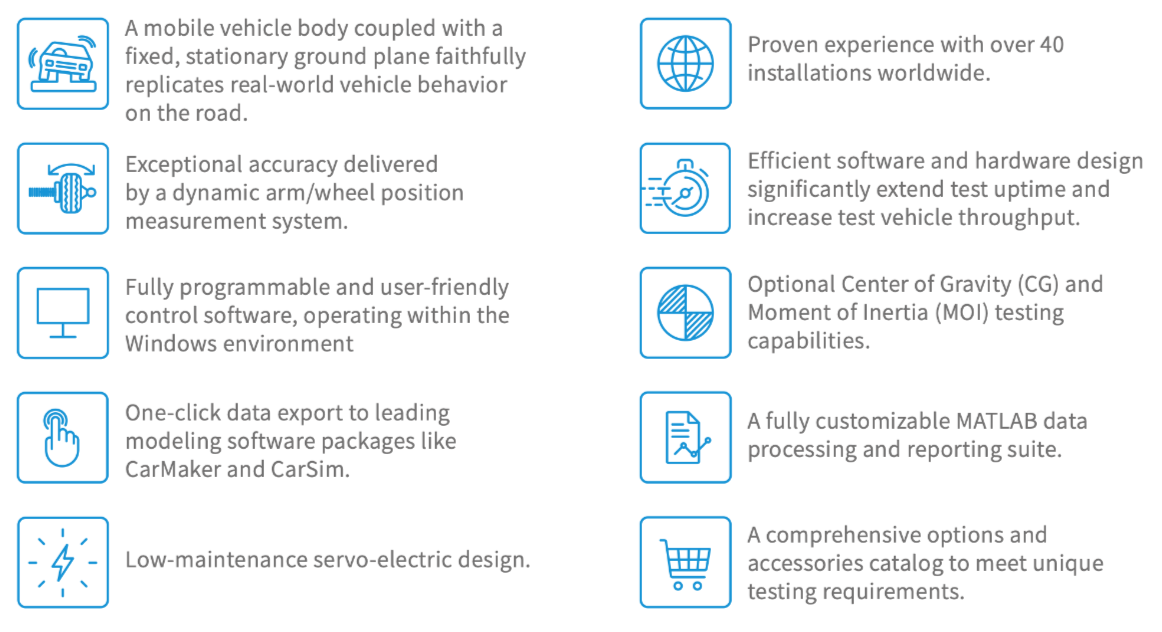

Product Features

·Moving body, fixed ground-plane design that faithfully simulates on-road vehicle behavior

·Servo-electric linear actuators with EtherCAT control system, low maintenance

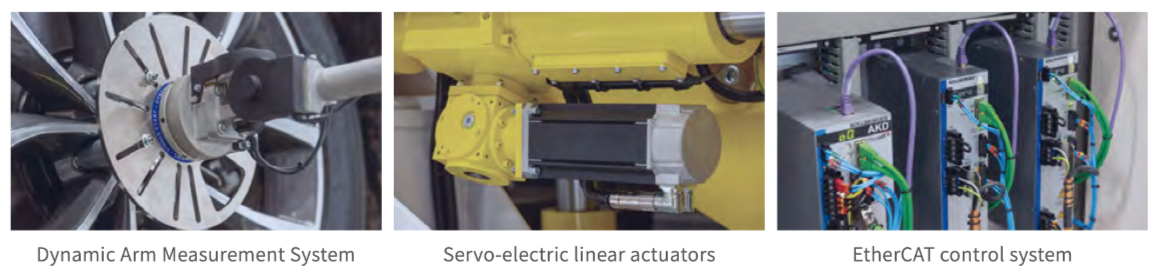

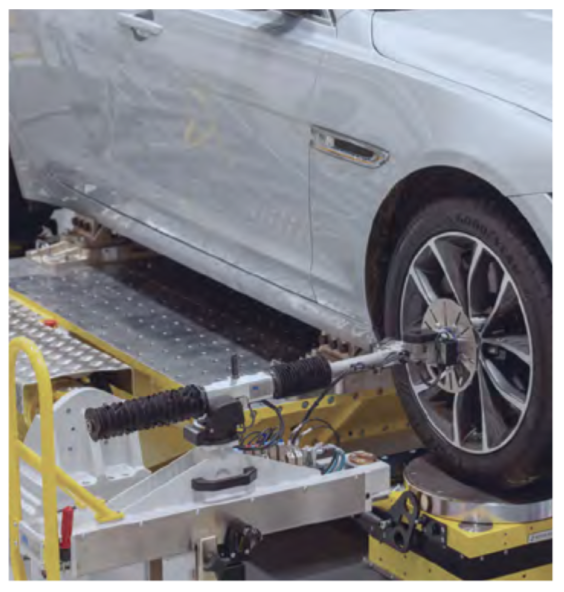

·Dynamic arm wheel position measurement system: longitudinal (X), lateral (Y) and vertical (Z) accuracy ±0.02mm (resolution 0.005mm), steering and camber accuracy ±0.004°/±0.005° (resolution ±0.001°)

·Optional center-of-gravity and moment-of-inertia testing capability

·Fully programmable and easy-to-use Windows control software

·One-click data export to common modeling software such as CarMAKER and CarSIM, with a fully customizable MATLAB data processing and reporting suite

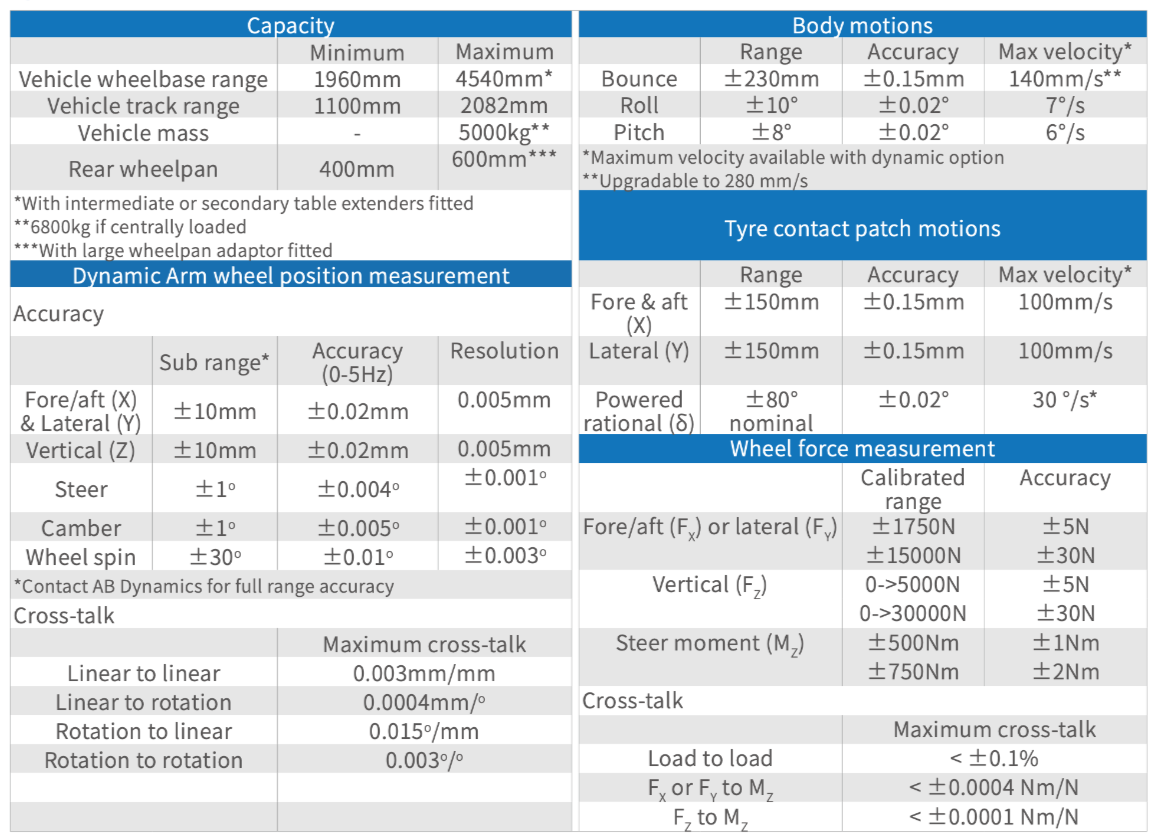

·Vehicle adaptation range: wheelbase 1960-4540mm, track 1100-2082mm (rear track 400-600mm with wide-track adapter), maximum vehicle mass 5000kg (6800kg with concentrated loading)

·Body motion: bounce ±230mm (±0.15mm, up to 140mm/s, dynamic option upgradeable to 280mm/s), roll ±10°, pitch ±8°, power steering rotation ±80°

·Force measurement: Fx/Fy ±1750N (±5N)/±15000N (±30N), Fz 0-5000N (±5N)/0-30000N (±30N), steering moment Mz ±500Nm (±1Nm)/±750Nm (±2Nm), load-to-load crosstalk <±0.1%

·Efficient software and equipment design can significantly extend test uptime and tested-vehicle throughput
